HALO
Hyper-fast, super rugged HPLC columns
The fused-core* particle technology was specially
developed to produce hyper-fast chromatographic separation while avoiding
the uncertainties associated with UHPLC. The father of the technique is dr.
Jack Kirkland, widely regarded as one of the "founders" of HPLC.
* or core-shell, or
superficially-porous, or semi-porous, or pellicular
BACK PRESSURE - significantly less compared to UHPLC
columns
CONVENTIONAL HPLC EQUIPMENT can be used with near-UHPLC performance
2um INLET FRIT eliminates frit plugging problem
FAST SEPARATION at high flow rates maintaining the resolving power
 |
(JPEG file, opens in new window) |
HALO 2.7um Specifications
- Ultra-pure type "B" silica support
- 1.7um solid core with 0.5um porous silica layer fused to the surface
- 150 m2/g surface
- 90A or 1000A (C4) pore size
- Monomeric bonding chemistry
- pH range: 2 to 9
- Max. pressure: 600 bar
Chemistries
C4 ...
The
world’s first 2.7-micron superficially porous silica particles with 1000
Angstrom pores for the separation of very large molecules such as monoclonal
antibodies, large proteins, synthetic polymers,
etc.
C8 ...
Separations are due primarily to hydrophobic interactions and differences in
hydrophobicity among analytes. Excellent for a broad range of analytes.
C18 ... Separations are due
primarily to hydrophobic interactions and differences in hydrophobicity
among analytes. Excellent for a broad range of analytes.
Peptide ES-C18 ... Ideal for
ultrafast and high resolution separation of peptides and polypeptides (≤
15 kDa). Enhanced stability at low pH via sterically protected ligands up to
90 degrees C.

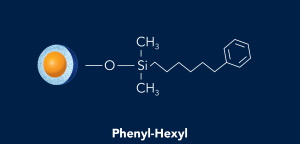

Phenyl-Hexyl ... Separations
occur due to hydrophobic and pi-pi interactions. Enhanced retention and
selectivity for aromatic and unsaturated analytes (especially those with
electron-withdrawing groups and halogens). Compatible with highly aqueous
mobile phases.
HILIC ... Can be used in both
HILIC and normal-phase modes. Enhanced sensitivity and peak shape for LC-MS
analyses of basic analytes.
Penta-HILIC ... Provides
superior retention to silica HILIC and amide HILIC phases for acids and
zwitterionic analytes
PFP ... Separations take place
due to multiple types and degrees of analyte interactions including
hydrophobic, pi-pi, dipole-dipole, and hydrogen bonding. Can be used in
HILIC mode (with more than 80% acetonitrile in mobile phase). Enhanced
selectivity for stereoisomers. Compatible with highly aqueous mobile phases.
RP-Amide ... Retention and
selectivity due to hydrophobic and hydrogen bonding interactions. Less
retentive than C18 and C8, except for analytes with proton-donor groups.
Compatible with 100% aqueous mobile phases.
Peptide ES-CN ... Provides strong
dipole-dipole interactions with analytes and weak hydrophobic interactions.
Suitable for use in reversed-phase, HILIC, and normal-phase modes. Rapid
equilibration with low bleed for high throughput LC-MS applications. Extra
stable bonding with sterically protected ligand provides improved stability
and performance compared to conventional CN phases, especially at low pH
(1-4).
HALO 3.4um Specifications
- Ultra-pure type "B" silica support
- 3.0um solid core with 0.2um porous silica layer fused to the surface
- 400A pore size
Chemistries
Protein C4
... Dimethylbutylsilane, exhaustively endcapped and enhanced for high
temperature stability.
Protein ES-C18 ...
Reversed-phase wide-pore packing for separating mid-high molecular weight
compounds such as proteins and polypeptides < 500 kDa
Protein Diphenyl ... Increased
Resolution compared to FPP 300A Diphenyl
- Ultra-pure type "B" silica support
- 3.8um solid core with 0.6um porous silica layer fused to the surface
- 90 m2/g surface (equivalent to 150-200m2/g totally porous particles)
- 90A pore size
- Monomeric bonding chemistry
- pH range: 2 to 9
- Max. pressure: 600 bar
Chemistries
C8 ...
Separations are due primarily to hydrophobic interactions and differences in
hydrophobicity among analytes. Excellent for a broad range of analytes.
C18 ... Separations are due
primarily to hydrophobic interactions and differences in hydrophobicity
among analytes. Excellent for a broad range of analytes.
Peptide ES-C18 ... Ideal for
ultrafast and high resolution separation of peptides and polypeptides (≤
15 kDa). Enhanced stability at low pH via sterically protected ligands up to
90 degrees C.
Phenyl-Hexyl ... Separations
occur due to hydrophobic and pi-pi interactions. Enhanced retention and
selectivity for aromatic and unsaturated analytes (especially those with
electron-withdrawing groups and halogens).
HILIC ... Can be used in both
HILIC and normal-phase modes. Enhanced sensitivity and peak shape for LC-MS
analyses of basic analytes.
Penta-HILIC ... Provides
superior retention to silica HILIC and amide HILIC phases for acids and
zwitterionic analytes
PFP ... Separations take place
due to multiple types and degrees of analyte interactions including
hydrophobic, pi-pi, dipole-dipole, and hydrogen bonding. Can be used in
HILIC mode (with more than 80% acetonitrile in mobile phase). Enhanced
selectivity for stereoisomers. Compatible with highly aqueous mobile phases.
RP-Amide ... Retention and
selectivity due to hydrophobic and hydrogen bonding interactions. Less
retentive than C18 and C8, except for analytes with proton-donor groups.
Compatible with 100% aqueous mobile phases.
Peptide ES-CN ... Provides strong
dipole-dipole interactions with analytes and weak hydrophobic interactions.
Suitable for use in reversed-phase, HILIC, and normal-phase modes. Rapid
equilibration with low bleed for high throughput LC-MS applications. Extra
stable bonding with sterically protected ligand provides improved stability
and performance compared to conventional CN phases, especially at low pH
(1-4).
| Packing Description | Bonded Phase | Retention Mode | Target Analytes |
| HALO Peptide ES-C18 | Peptide ES-C18 (diisobutyloctadecylsilane) |
Hydrophobic interactions | A stable, reversed-phase packing used for separating peptides and polypeptides < 20 kDa |
| HALO Peptide ES-CN | Peptide ES-CN (diisopropylcyanopropylsilane) |
Hydrophobic interactions | An alternative stable, reversed-phase packing that can be used for separating peptides and polypeptides < 20 kDa |
| HALO Protein C4 | Protein C4 (dimethylbutylsilane) |
Hydrophobic interactions | A wide-pore stable, reversed-phase packing used for separating high molecular weight compounds such as proteins and polypeptides < 500 kDa |
| HALO Protein ES-C18 | Protein ES-C18 (diisobutyloctadecylsilane) |
Hydrophobic interactions | An alternative stable, reversed-phase wide-pore packing for separating mid-high molecular weight compounds such as proteins and polypeptides < 500 kDa |
| HALO Protein Diphenyl | Protein 400A Diphenyl (Diphenylmethylsilane) |
Hydrophobic interactions | Designed on a 3.4um particle providing the speed, ruggedness and resolution desired for quick release assays and flexible to method conditions to express necessary critical quality attributes |
| HALO Glycan | Glycan proprietary penta-hydroxy-ligand |
Hydrophilic interaction polyhydroxy bonded phase w. adsorbed aqueous layer |
Ideal for separation of highly polar oligosaccharides and particularly for protein-linked glycans and glycopeptides |
| Packing Description | Endcapped | Particle, um | Pore, A | Max P (bar) | Max T (°C) | pH | Carbon, % |
| HALO Peptide ES-C18 | No | 2 / 2.7 / 5 | 160 | 600 | 90 | 1 - 8 | 4.6 / 4.0 |
| HALO Peptide ES-CN | Yes | 2.7 / 5 | 160 | 600 | 90 | 1 - 8 | 2.2 / 1.5 |
| HALO C30 | Yes | 2.7 | 160 | 600 | 40 | 2 - 9 | 4.5 |
| HALO Protein C4 | Yes | 3.4 | 400 | 600 | 90 | 2 - 9 | 0.4 |
| HALO Protein ES-C18 | Yes | 3.4 | 400 | 600 | 90 | 1 - 8 | 1.0 |
| HALO Protein Diphenyl | Yes | 3.4 | 400 | 600 | 90 | 2 - 9 | --- |
| HALO Glycan | No | 2.7 | 90 | 600 | 65 | 2 - 9 | 3.2 |
| HALO C4 1000 | Yes | 2.7 | 1000 | 600 | 40/90 | 2 - 9 | 0.6 |
| HALO ES-C18 1000 | Yes | 2.7 | 1000 | 600 | 40/90 | 1 - 8 | 1.4 |
| HALO Diphenyl 1000 | Yes | 2.7 | 1000 | 600 | 40/90 | 2 - 9 | 1.0 |
